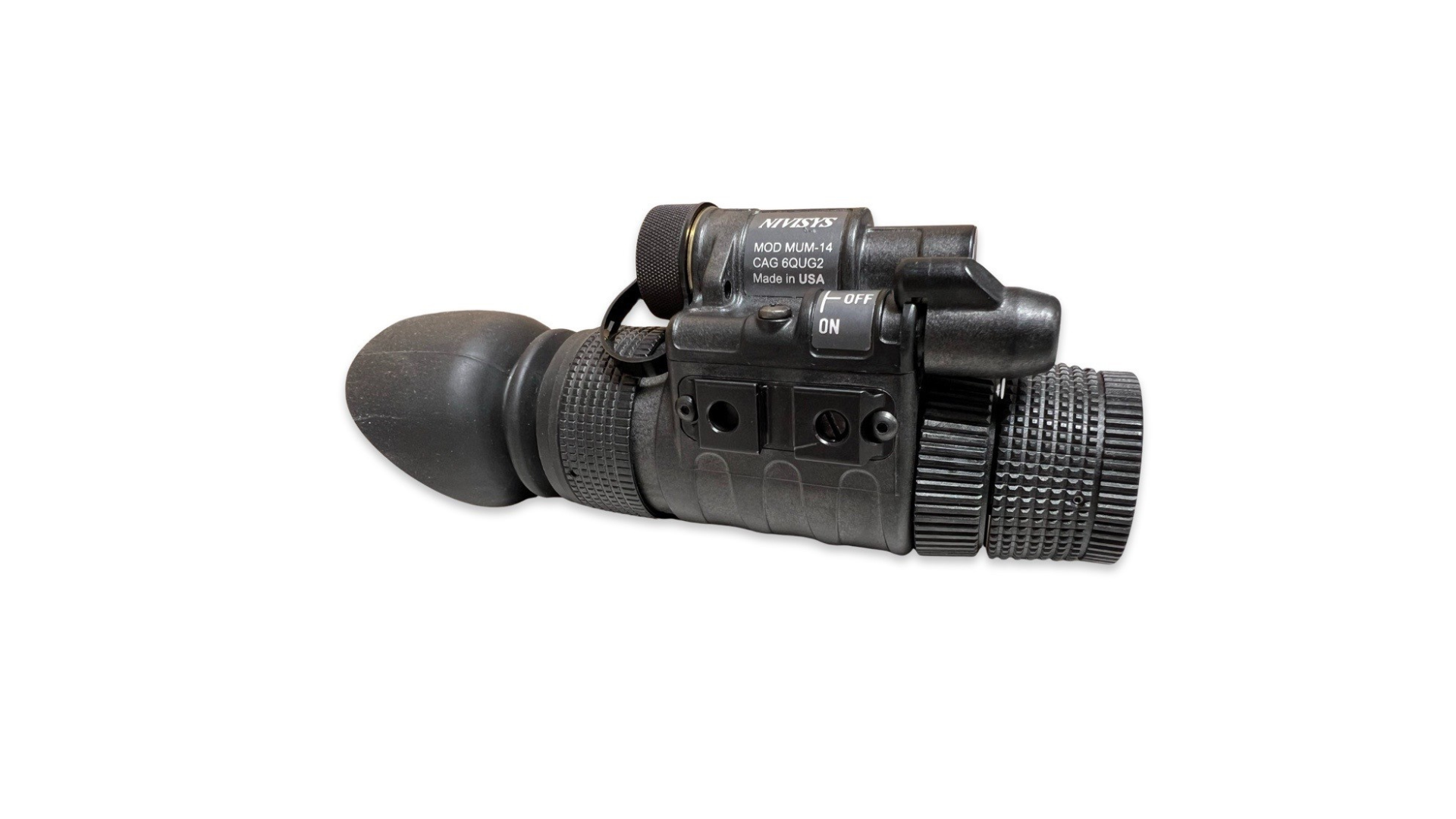

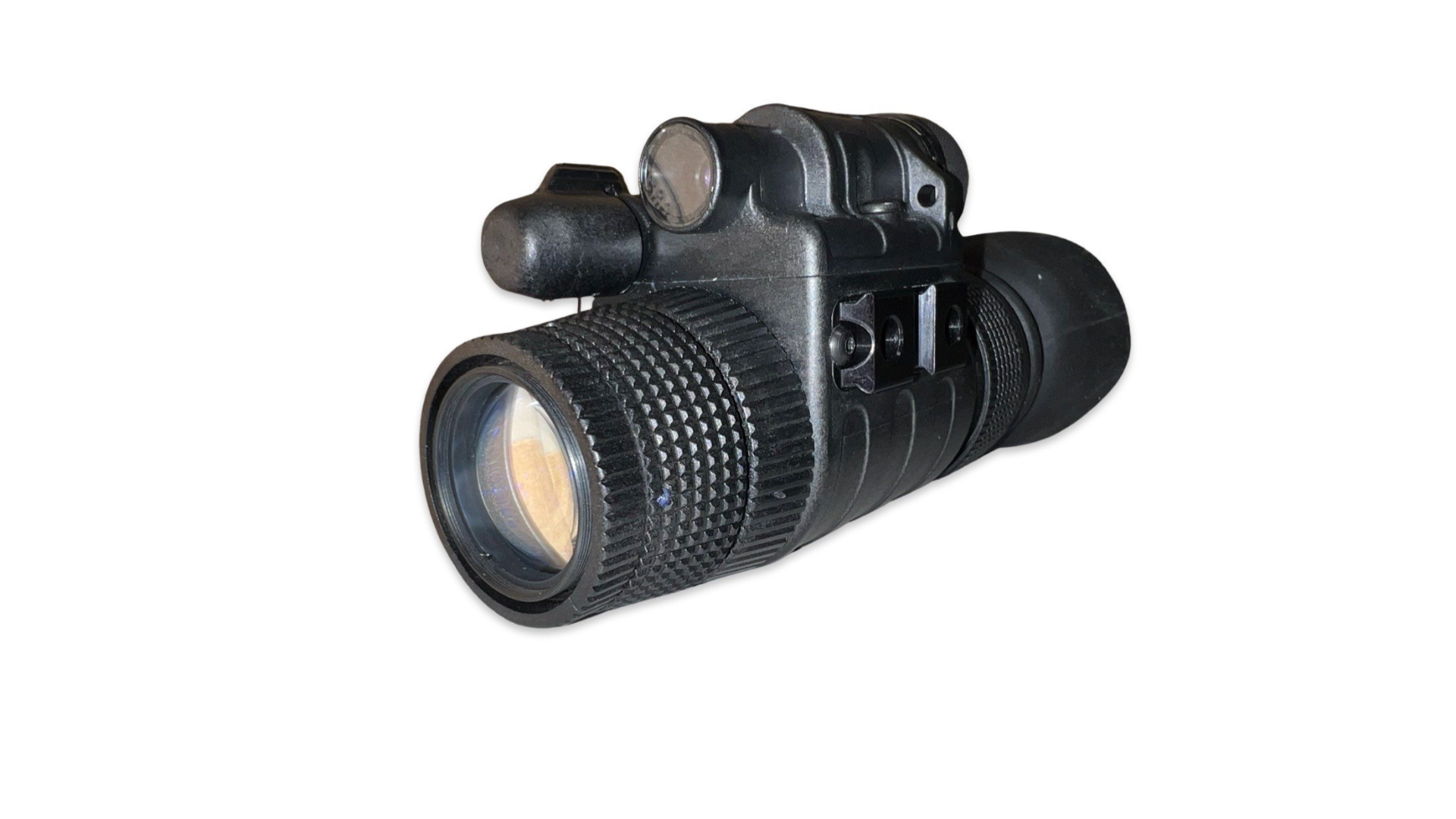

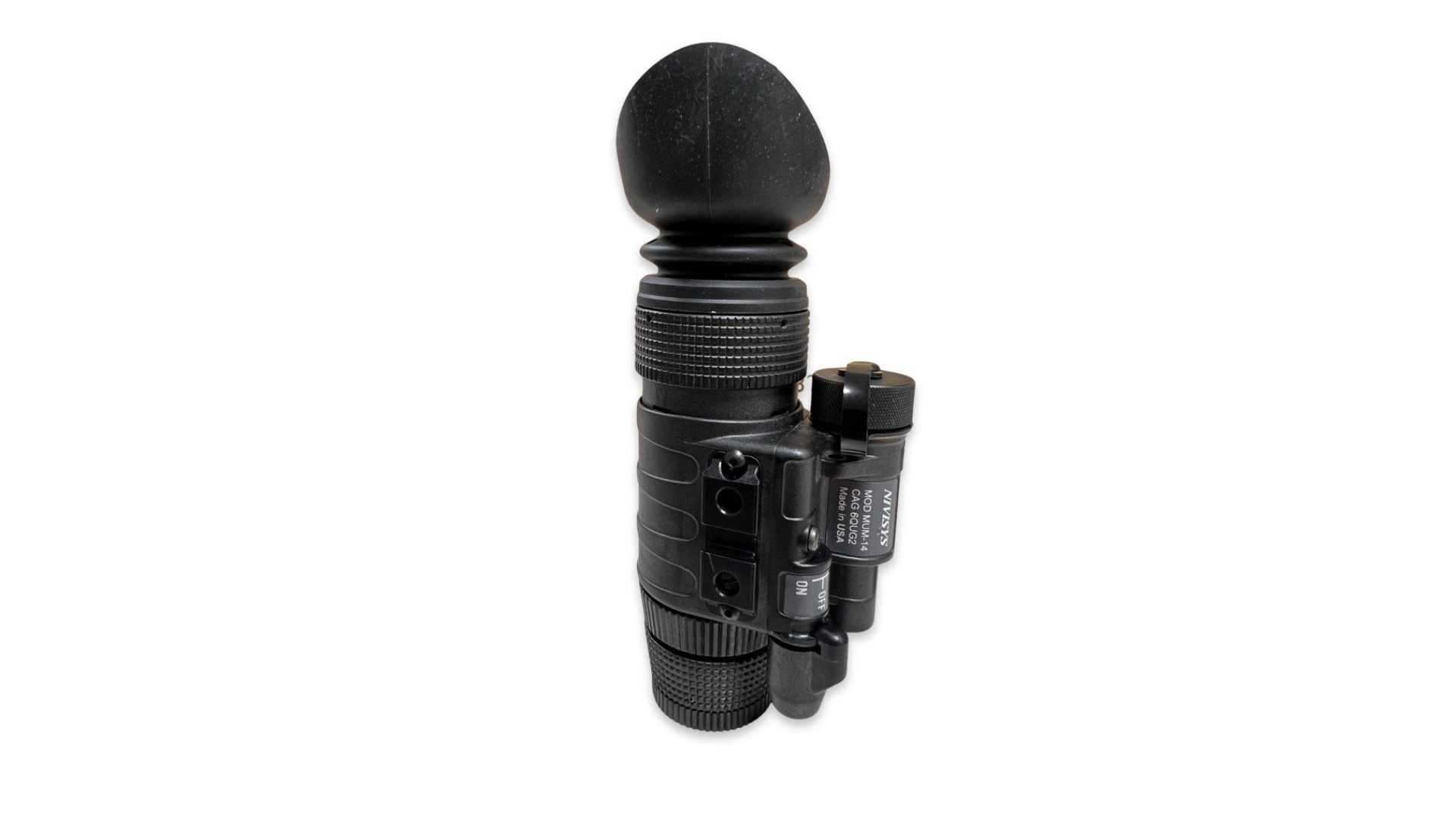

MUM-14

Nivisys Multi-Use Monocular

  • The Multi-use MUM-14 Mini-Monocular is a high performance modular, hand-held passive night vision monocular device that utilizes a single Generation III intensifier tube to provide crisp, clear images under the darkest conditions. The Mini Monocular "single tube / single eyepiece" approach to night vision missions is based upon the proven concept that independent use of each eye maximizes the ability of the user to operate under a wide range of low light conditions and maintain maximum situational awareness.

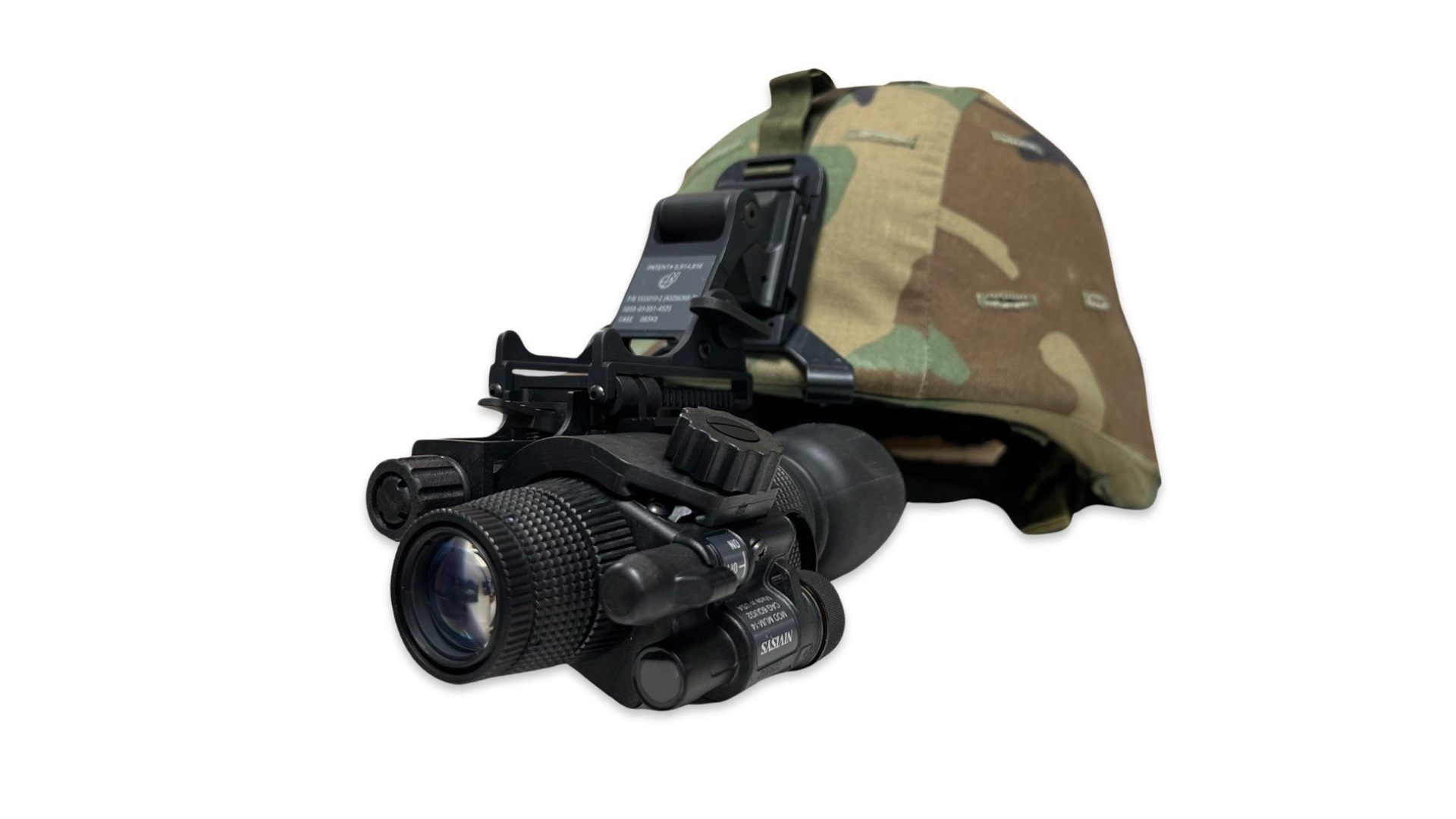

    Small and versatile, the MUM-14 Mini-Monocular gives you a high performance 2nd or 3rd generation system in the smallest, toughest package available. The MUM-14 has the ability to be weapon mounted, head/helmet mounted, hand-held, optionally attached to C-Mount lenses, cameras and extender 3x/5x Afocal objective lenses. Also available is the dual-system head/helmet mount that allows two Mini Monoculars to become one binocular system.

  • Features

    • 3rd Generation
    • High Res: 64 lp/mm
    • Lightweight
    • Compact
    • Rugged Design
    • Hands-free Operation
    • Integrated IR Illuminator
    • Submersible to 20m
    • Single Battery Use (AA or CR123)
    • MIL-SPEC
    • Head, Helmet or Weapon Mountable
    • Intuitive Modular Design
    • Dual Mini Rails for Fast Head and Weapon Mounting Transition
  • Specifications

    • Image Intensifier Tube: 18mm 2nd/3rd Gen
    • Resolution: 1.3 cy/mR (typical Gen III)
    • Spectral Response: 600-900nm
    • Objective Lens: 27mm, f/ 1.2
    • Magnification: 1x (unity)
    • Field of View: 40° standard13.3° with 3x Afocal10.0° with 4x Afocal8.0° with 5x Afocal
    • Focus Range: 25cm - ∞
    • Battery Type: CR123 lithium or AA
    • Battery Life: >40 hours operation (CR123)>20 hours operation (AA)
    • Dimensions: (L x W x H)11.4cm x 4.9cm x 7.9cm
    • Diopter Range: +4 to -6
    • Weight: 305g (10.7 oz)
    • Eye Relief: 25mm
    • Indicators: Low Battery (yellow)IR Illuminator (red)
    • Environmental: -37°C to +54°C (operating)-51°C to +71°C (storage)20m (submersible)
  • Basic Kit:

    • Monocular
    • Swing Arm
    • Weapon Mount
    • Green Soft Carry Case
    • AA Battery Adapter
    • Neck Cord
    • Objective Lens Cap
    • Sacrificial Window
    • Batteries (AA and CR123)
    • Lens Tissue
    • Demist Shield

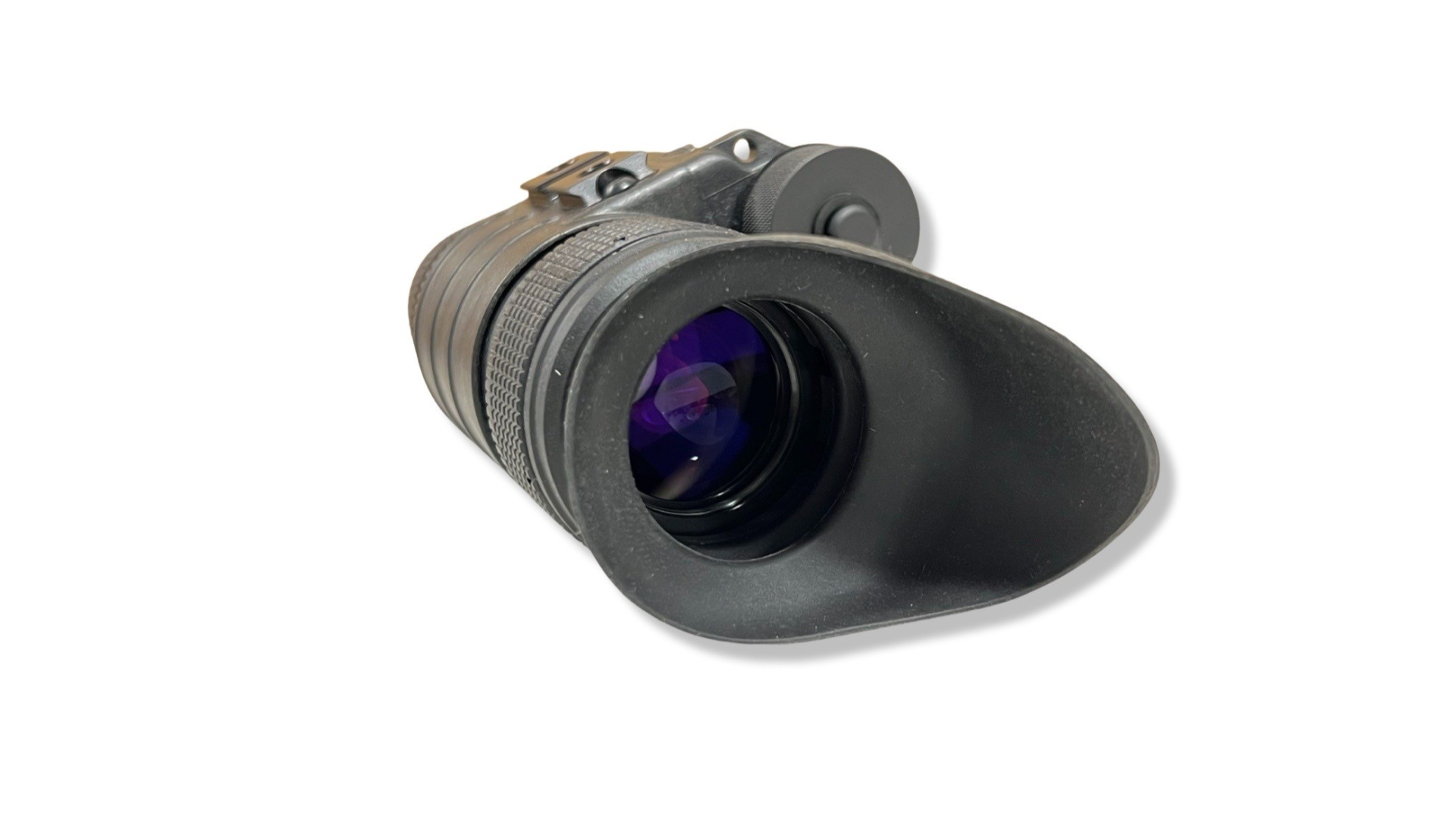

    • Rubber Eyecup
    • Manual
    • Headmount with browpads (S,M,L)
