Nivisys Universal Thermal Acquisition Thermal Scope

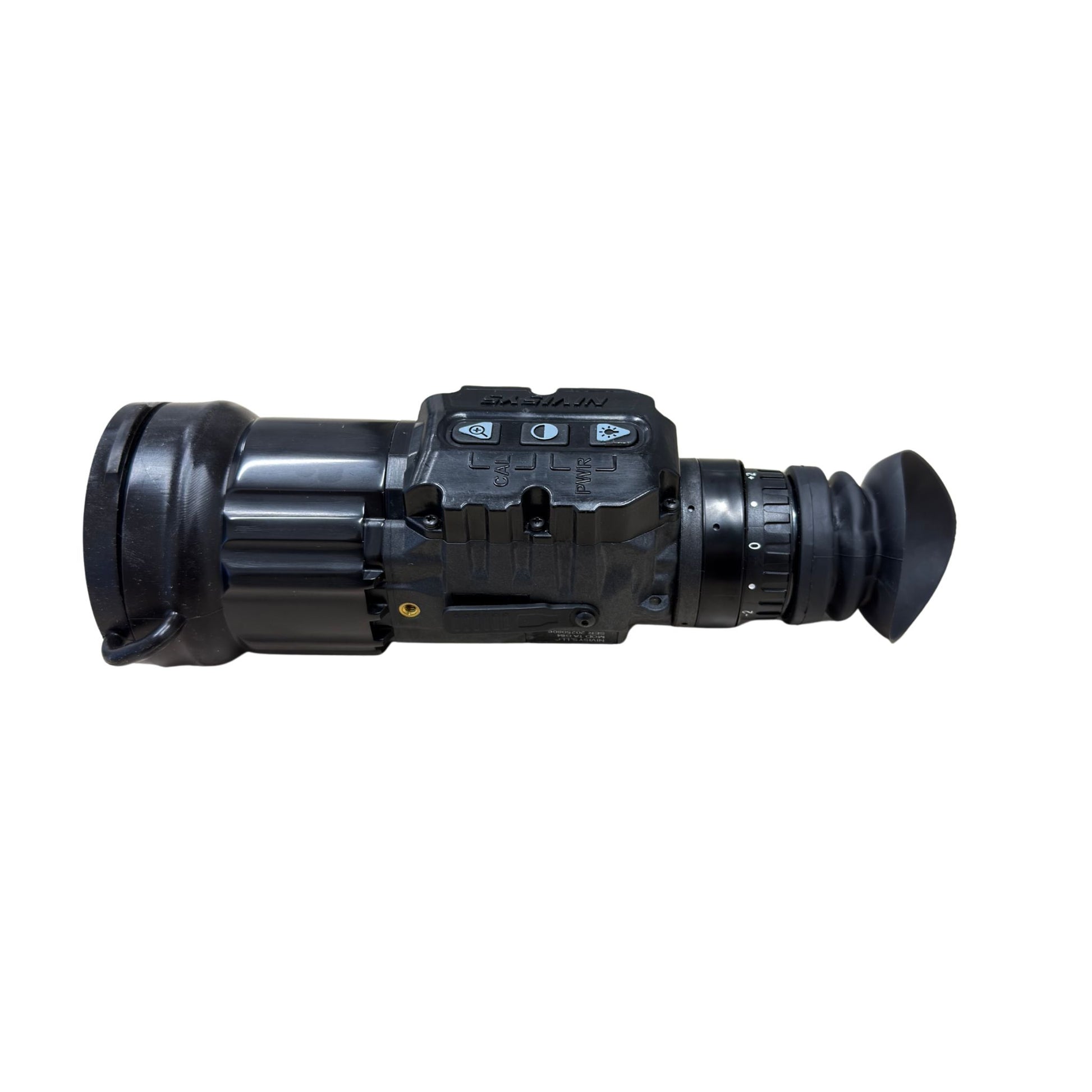

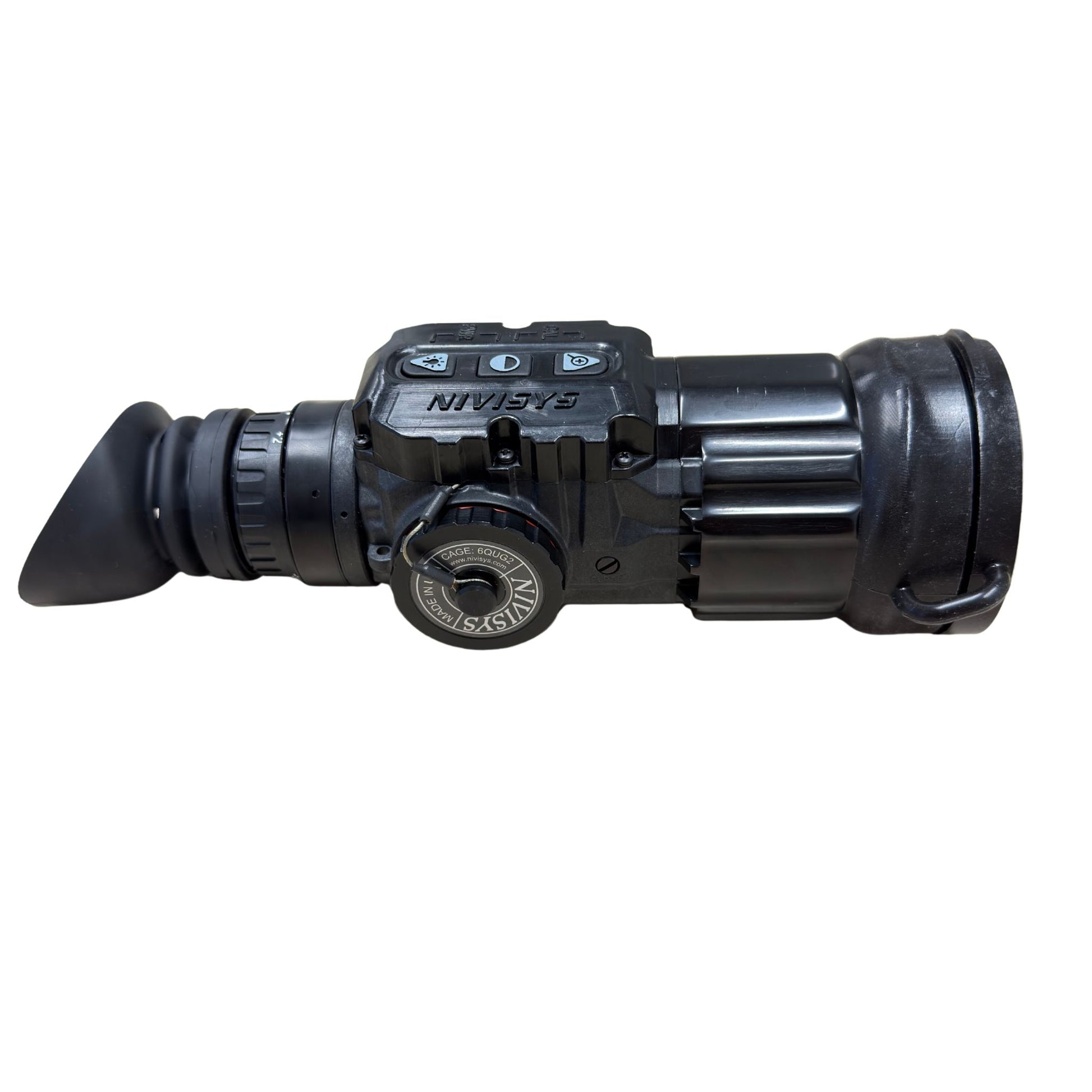

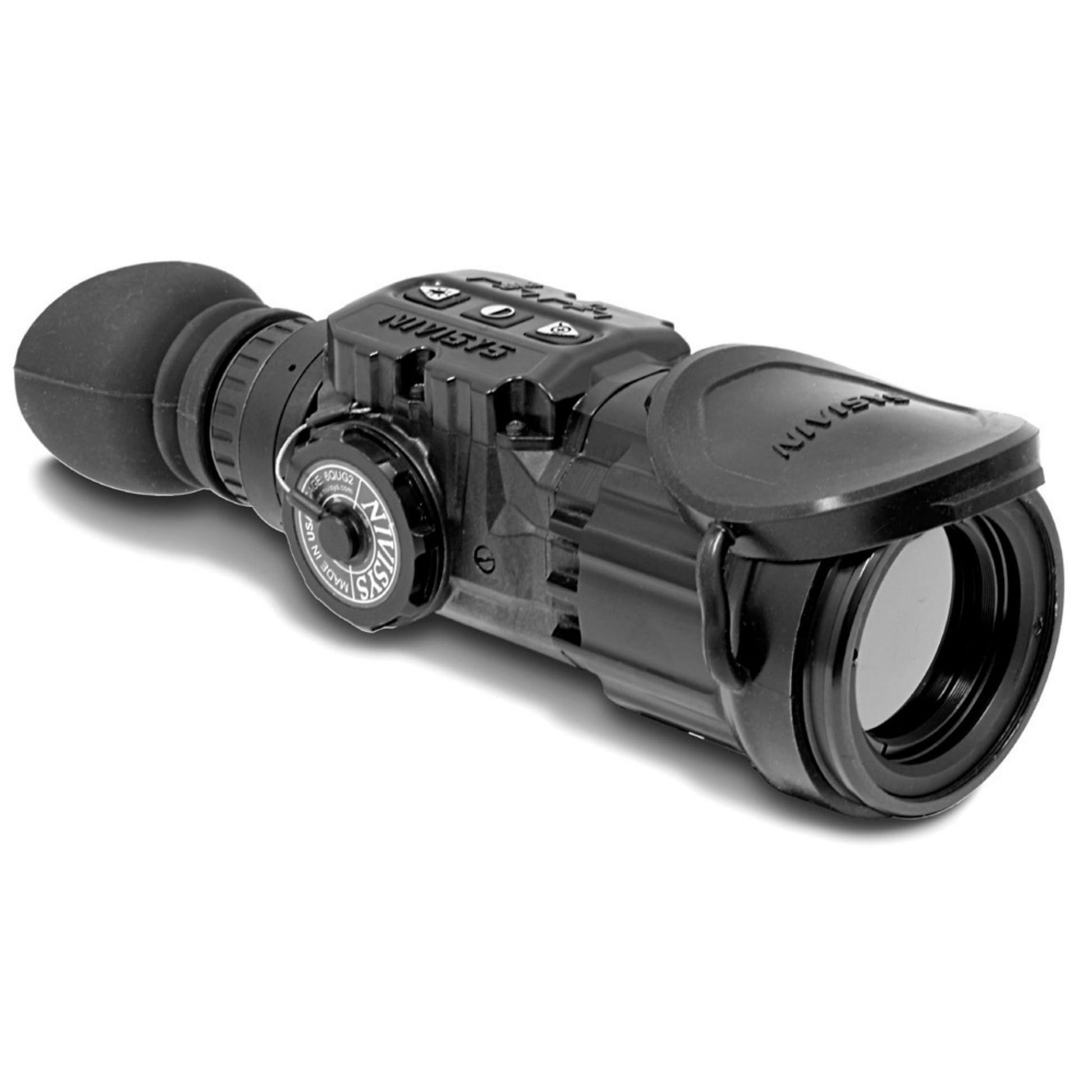

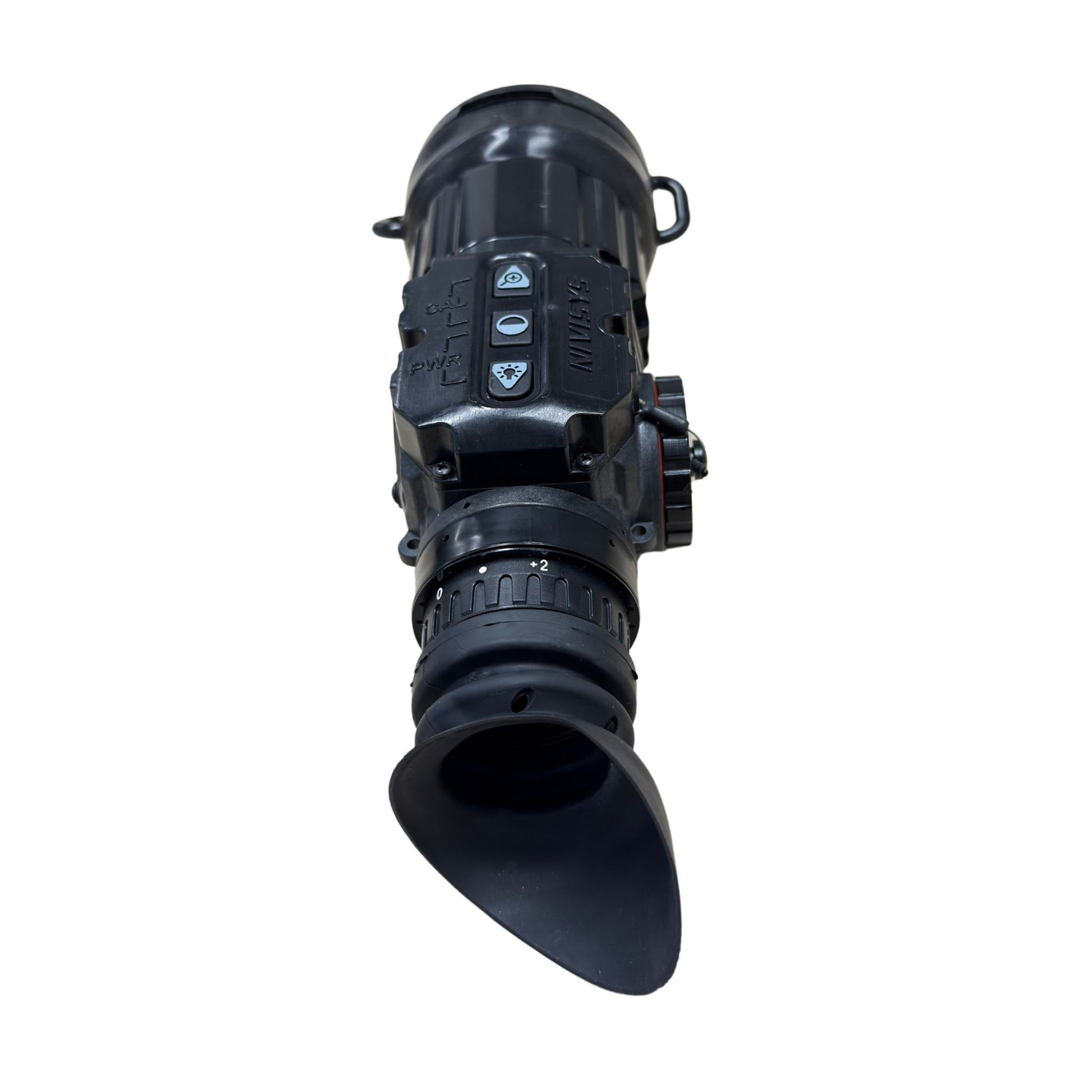

The UTAM-64iL is a rugged, military-grade thermal monocular designed for professionals who require reliable thermal imaging in complete darkness, adverse weather, and challenging environments. Built in the USA, it combines a high-resolution 640 × 512 VOx uncooled thermal sensor with a 50mm objective lens to deliver exceptional image clarity and long-range target detection.

Compact enough for handheld use yet durable enough for weapon mounting on any standard Picatinny rail, the UTAM-64iL features intuitive controls, multiple color palettes, digital zoom, selectable reticles, and on-board windage and elevation adjustments. Capture still images for later review, or expand its capabilities with optional video output and recording accessories.

Whether used for surveillance, search and rescue, security, or tactical applications, the UTAM-64iL provides dependable thermal performance when visibility is limited.

Key Features
- 640 × 512 VOx uncooled thermal sensor
- 50mm f/1.2 objective lens
- 1.9× optical magnification
- 12° × 9° field of view
- OLED display for excellent contrast

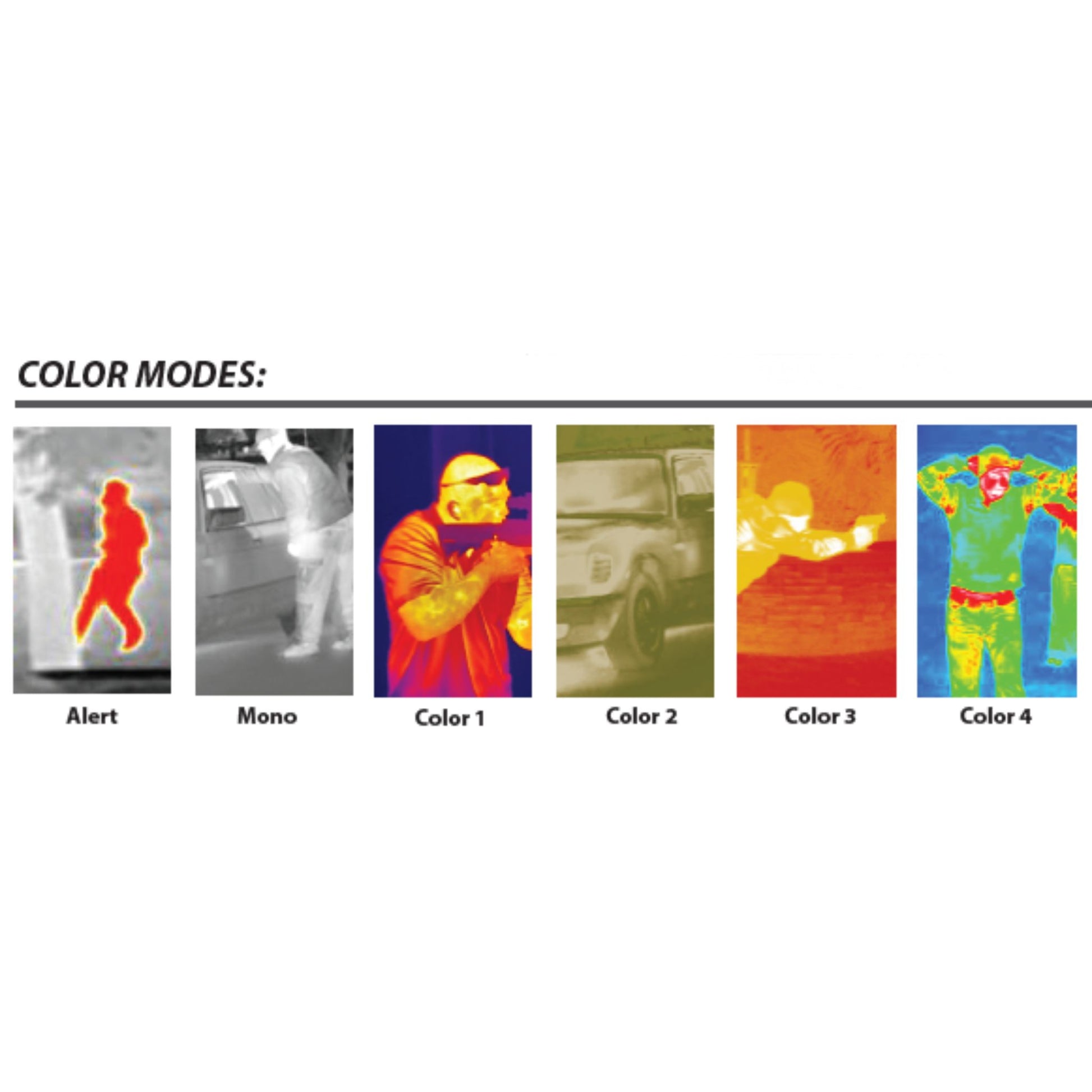

- Multiple color palettes and polarity modes
- Digital zoom (up to 8×)
- Selectable reticles with digital windage and elevation adjustments
- Still image capture and review
- Handheld or Picatinny rail-mounted operation
- Made in the USA

Specifications
- Sensor: 640 × 512, 17μm VOx Microbolometer
- Frame Rate: 30 Hz
- Thermal Sensitivity: <50 mK
- Spectral Response: 7–14 μm
- Detection Range (Person/Vehicle): Up to 1,212 m / 2,297 m
- Power: 2 × CR123 Lithium batteries
- Battery Life: Up to 3 hours
- Weight: 607 g
- Operating Temperature: -40°C to +55°C (-40°F to +131°F)

Spec Sheet

ITAR Compliance Requirement
Before your order can be shipped, we must verify that the purchaser is a U.S. Person in accordance with our export compliance procedures.
Please email the following to sales@frsttx.com:
- A completed Export Compliance Certification Form (click here to download).
- A clear copy of either:
  Your valid U.S. driver's license (front and back), or
  Your valid U.S. passport.
Orders cannot be shipped until these documents have been received and verified. This requirement applies even if the product is being shipped within the United States.

ITAR Product
No export outside the United States is allowed.
By adding this product to your cart, you certify that:
- You are a U.S. Person.
- You do not intend to export this product.
- You understand that this product is regulated under the International Traffic in Arms Regulations (ITAR).

Export Notice
These items are controlled by the U.S. Government and authorized for export only to the country of ultimate destination for use by the ultimate consignee or end-user(s) identified in the export documentation. They may not be resold, transferred, or otherwise disposed of to any other country or to any person other than the authorized ultimate consignee or end-user(s), either in their original form or after being incorporated into other items, without first obtaining approval from the U.S. Government or as otherwise authorized by applicable U.S. laws and regulations.
