Dual Monocular System

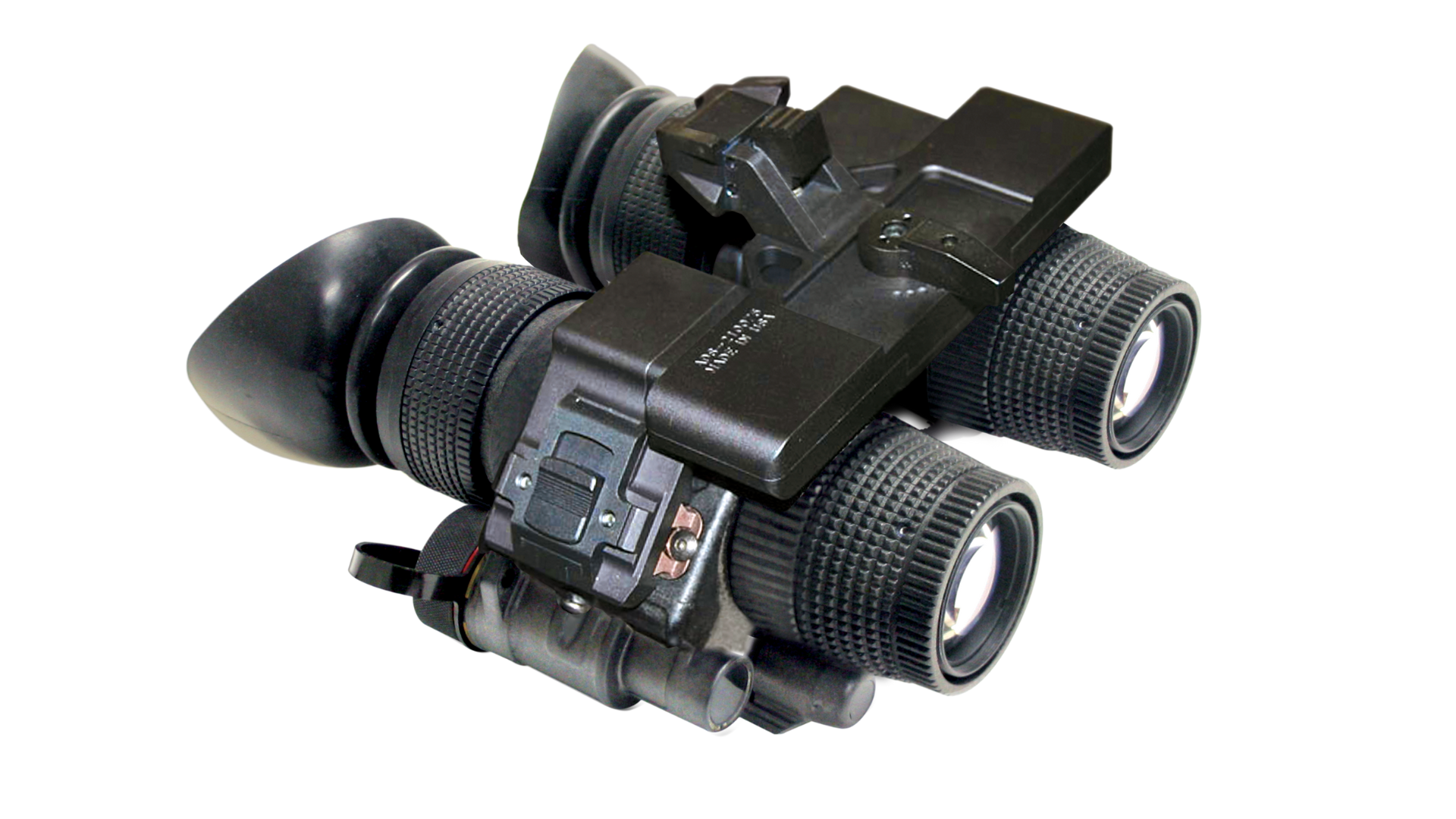

  • The DMS-15 system has been designed and configured to be comparable to a PVS-15 in performance, size and weight. However, the MUM-15 boasts another feature that the PVS-15 does not - it’s ability to be separated into two complete monocular systems. It is one of the most versatile binoculars systems on the market to day because it can be taken apart to be used as two monoculars or attached to two different weapons as night vision sights (along with compatible reflex day optics). The two monoculars are bridged together by a rugged and light weight Dual Carriage Mount (DCM). Increased depth perception is experienced with the two tube system for night operations that require driving or dismounted manoeuvering . The DMS-15 has interpupillary and diopter adjustments for optimal performance.

    The DMS-15 is made up of two MUM-14’s. The MUM-14 is a high performance modular, hand-held passive night vision monocular device that utilizes a single Gen 3 intensifier tube to provide crisp, clear images under the darkest conditions. Small and Versatile, the MUM-14 gives you a high performance Gen 3 system in the smallest package available. The MUM-14 has the ability to be hand-held, weapon mounted, head/helmet mounted, or used with 3x/5x afocal magnifier lenses.

  • Features

    • Versatile and Modular
    • Gen 3 Tube Technology
    • High Res: 64 lp/mm
    • Lightweight and Compact
    • Rugged Design
    • Hands-free Operation
    • Integrated IR Illuminator
    • Uses AA or CR123 battery types

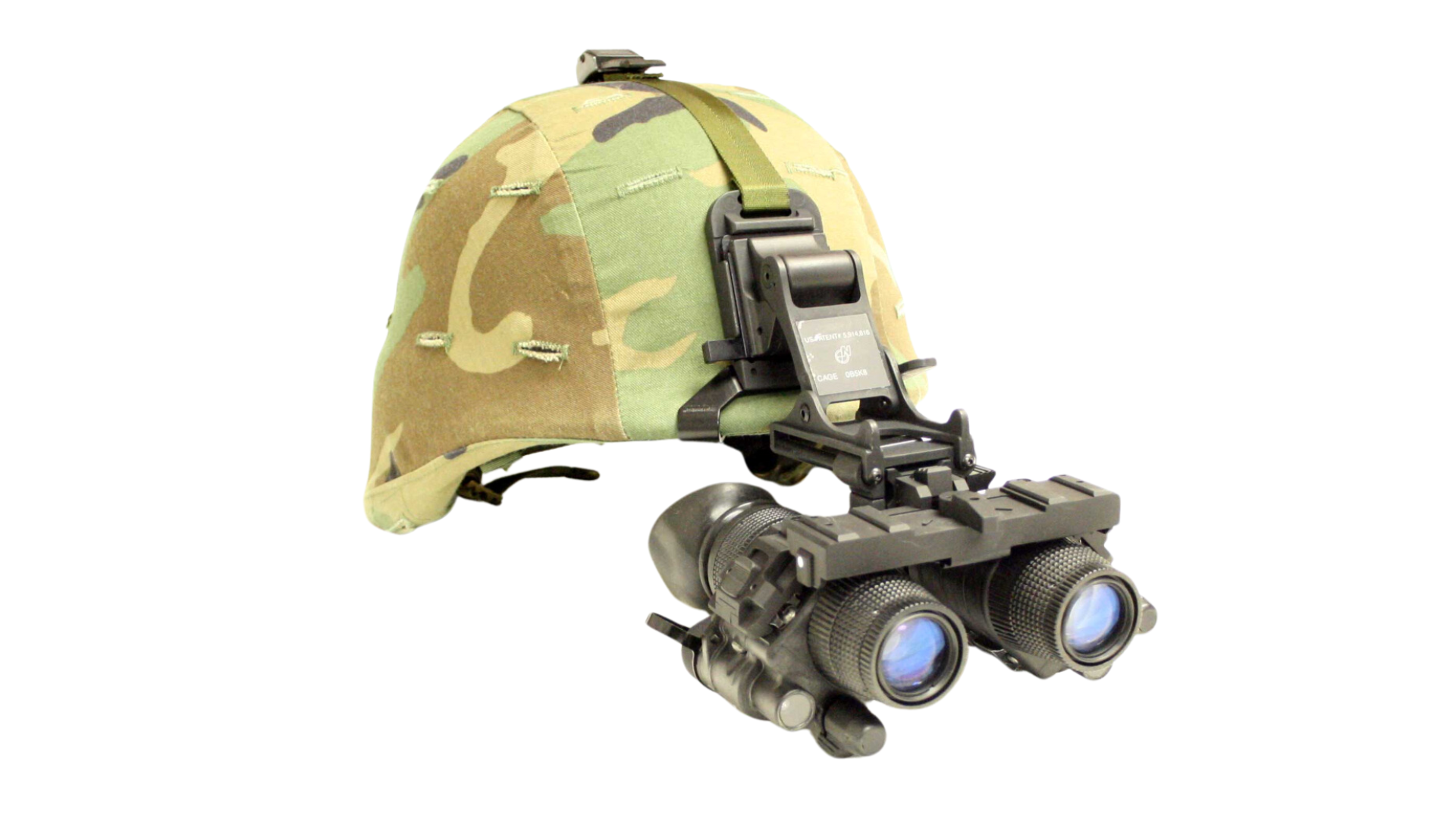

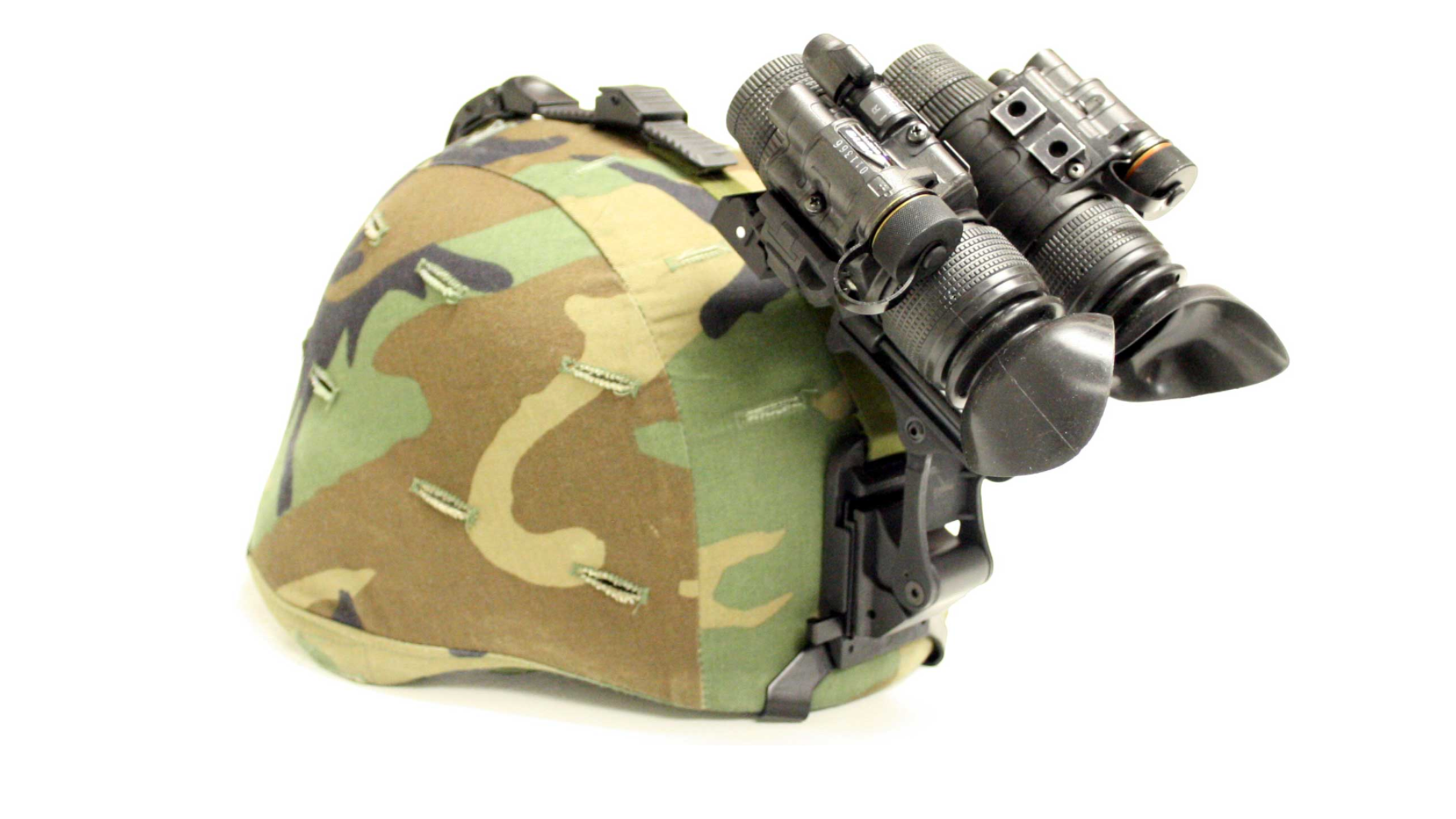

    • Head, Helmet or Weapon
    • Mountable
    • Intuitive Modular Design
    • Dual Mini Rails for Fast Head and Weapon
    • Mounting Transition
  • Specifications

    • Image Intensifier Tube: 18mm 3rd Gen type MX-1060 (2ea.)
    • Resolution: 1.3 cy/mR (typical Gen III)
    • Objective Lens: 27mm, f/ 1.2
    • Magnification: 1x (unity)
    • Field of View: 40° standard 13.3° with 3x Afocal 8.0° with 5x Afocal
    • Focus Range: 15cm - ∞
    • Battery Type: CR123 lithium or AA
    • Battery Life: >40 hours operations (CR123) >20 hours operation (AA)
    • Dimensions (L x W x H): 10.75 x 6.85 x 4.95 cm
    • Interpupillary Distance (IPD): 51mm to 72mm
    • Diopter Range: +4 to -6
    • Weight: Single monocular configuration, 260g Binocular configuration, 650g
    • Eye Relief: 27mm
    • Indicators: Low battery (yellow) IR illuminator (red)
    • Environmental: -37C to +54C (operating) -51C to +71C (storage) 20m (submersible)

  • The hardware and/or data supplied in connection with this transmission, including Purchase Order and/or Request for Quotation, may be subject to export control under the jurisdiction of either the International Traffic in Arms Regulations, 22 CFR 120-130 (ITAR) or the Export Administration Regulations, 15 CFR Parts 730-774 (EAR). The disclosure or transfer of this hardware and/or technical data to foreign person(s) may require written export authorization granted by the Directorate of Defense Trade Control (DDTC) or the Bureau of Industry Security (BIS) in the form of an export license, a technical assistance agreement, or the use of an applicable exemption or exception. The Supplier is not allowed to export the hardware and/or technical data provided by Nivisys LLC without prior written approval from Nivisys LLC’s Export Compliance Officer. Diversion contrary to U.S. law is prohibited. Violations are punishable by both civil and criminal penalties, which may be severe.
